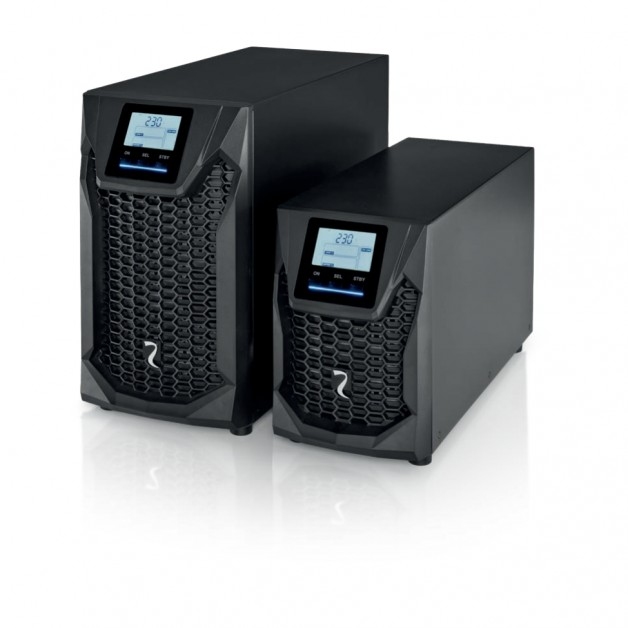

Sentinel Pro2 UPS

Sentinel Pro2

Power Range

700 - 3000 VA
  • 1:1

Sentinel Pro2 is a tower UPS made to protect your IT infrastructure and keep it available, with quick and easy installation.

With models from 700 to 3000 VA, it uses on-line double conversion technology for the highest levels of reliability and protection for critical loads such as servers and IT and voice/data applications. It offers a power factor of 1, and different operating modes are available to reduce energy consumption or to use the system as a frequency converter.

The LCD display and LED status bar show the operating status at a glance, and EnergyShare output sockets allow connected loads to be disconnected automatically under configurable conditions. ER models with more powerful battery chargers extend runtimes to several hours, a USB port and expansion slot come as standard, and noise is kept below 40 dBA.

Enquire About This Product

Downloads

Characteristics

  • Power factor 1
  • Operating flexibility
  • Emergency function
  • Battery optimisation
  • Runtime expandability
  • Low noise level
  • Configurable via PC
  • Tower installation;
  • LCD screen;
  • LED status bar indicating the UPS operating mode;
  • Remote UPS shutdown;
  • Configurable via USB port;
  • Available in different power ratings, from 700 W to 3 kW;
  • Available with various options, such as extended runtime and increased battery charging current;
  • Dedicated matching battery cabinets with various capacity available.

This configuration ensures the operation of emergency systems that must be supplied in the event of a mains power failure, such as emergency lighting, fire detection/extinguishing systems and alarms. When the mains power supply fails, the inverter begins powering the loads with a progressive start up (Soft Start) in order to prevent overload. Sentinel Pro2 is compliant for installation in medium-voltage transformer rooms in accordance with applicable legislation, for the power supply with reserve charge of medium-voltage coils.

The Sentinel Pro2 range has a deep discharge protection device to optimise battery life. Periodically the UPS carries out a battery efficiency test (which can also be manually activated); its wide input voltage tolerance range helps to reduce battery usage and maintain performance over time.

Optional battery extension packs can be connected to increase UPS runtime. In addition the Sentinel Pro2 range includes ER versions with no internal batteries and more powerful battery chargers for longer runtimes.

Thanks to the use of high frequency components and load-based fan speed control, the noise produced by the UPS is less than 40 dBA.

  • Filtered, stabilised and reliable voltage: double conversion ON LINE technology (VFI compliant with IEC 62040-3) with filters for the suppression of atmospheric disturbances;
  • High overload capability (up to 150%)
  • Programmable Auto-restart when mains is restored;
  • Battery start up (Cold Start);
  • Power factor correction (UPS input power factor 1);
  • Wide input voltage tolerance range (from 140 V to 276 V) without battery intervention;
  • Runtime extendable up to several hours;
  • Fully configurable using UPS Tools configuration software;
  • Highly reliable batteries (automatic and manually-activated battery test);
  • High level of UPS reliability (total microprocessor control);
  • Low impact on the mains (sinusoidal take up).
  • Multi-platform communication for all operating systems and network environments: PowerShield3 supervision and shutdown software for Windows operating systems, Windows Server Virtualization Hyper-V, macOS, Linux, Citrix XenServer and other Unix operating systems;
  • UPS Tools configuration and customisation software supplied as standard;
  • Serial port over RJ45 connector and opto-isolated contacts;
  • USB port;
  • Slot for communications boards.

Technical Specifications

MODELS SP2 700
Rated voltage [V] 220 / 230 / 240
Voltage range without battery intervention [V] 140 <Vin <276 @ 50% load / 184 <Vin <276 @ 100% load
Voltage tolerance [V] 230 ±20%
Maximum permitted voltage [V] 300
Rated frequency [Hz] 50 / 60
Frequency tolerance [Hz] 40 ÷ 72
Power factor 1
Configurable Voltage range [V] Minimum threshold 180 ÷ 200 Maximum threshold 250 ÷ 264
Frequency tolerance [Hz] Configurable: 3% ÷ 10%
Output power [W] 700
Voltage distortion with linear load / with non-linear load <2% / <4%
Frequency [Hz] Selectable: 50 or 60 or self-learning
Static variation ±1%
Dynamic variation ≤5% in 20 ms
Waveform Sinusoidal
Current crest factor 3:1
Efficiency up to 93.7%
Efficiency ECO and SMART ACTIVE Modes 98%
Overload times <150% for 4 s, 150% for 1 s
Type VRLA AGM maintenance-free lead based; Supercaps available on 1000 and 3000 VA
Expandability No
Recharge time 2-4 h
Net weight [kg] 10.2
Gross weight [kg] 11.7
Dimensions (WxDxH) [mm] 158x422x235
Packaging dimensions (WxDxH) [mm] 245x500x340
Overvoltage protection [J] 300
Protections Overcurrent - short circuit - overvoltage - undervoltage - temperature - excessive low battery
Communications USB / RJ45 with dry contacts / Slot for communications interface
Input plugs 1x IEC 320 C14 (10 A)
Output sockets 4x IEC 320 C13 (10 A)
Standards European directives: LV 2014/35/EU low voltage Directive EMC 2014/30/EU electromagnetic compatibility Directive Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant Classification in accordance with IEC 62040-3 (Voltage Frequency Independent) VFI-SS-11 UL 1778:2014 and CSA C22.2 No. 107.3-14
Ambient temperature for the UPS 0 °C - +40 °C
Recommended temperature for battery life +20 °C - +25 °C
Range of relative humidity 5-95% non-condensing
Colour RAL 9005
Noise level at 1 m (ECO Mode) [dBA] <40
Standard equipment provided Power cable, IEC-IEC cable, USB cable, safety manual, quick start guide
