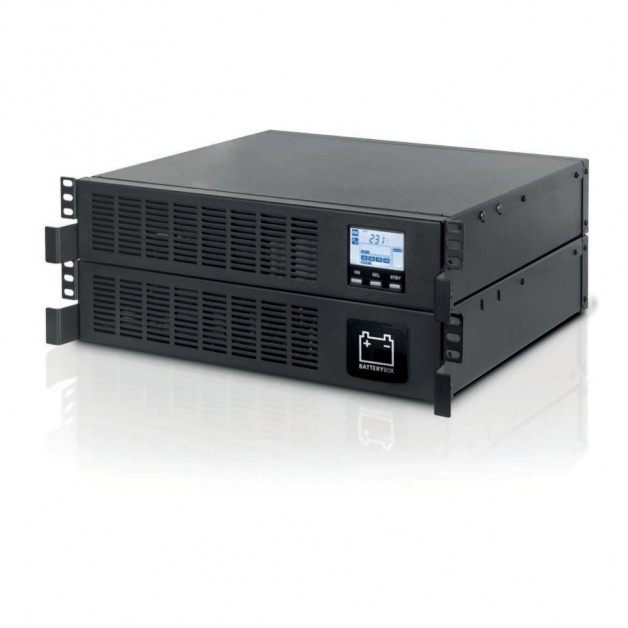

Sentinel Rack UPS

Sentinel Rack

Power Range

1500 - 3000 VA
  • 1:1

Thanks to their extremely compact design, Sentinel Rack models are ideal for protecting shallow rack cabinets or wall-mounted cabinets. The ON LINE double conversion technology ensures the highest levels of reliability and maximum protection for critical loads such as servers and IT and voice/data applications. For business continuity applications requiring long battery runtimes, battery autonomy can be extended up to several hours using the 3000 VA model fitted with a more powerful battery charger. The front display panel has been redesigned, adding an LCD display that shows input and output voltages, battery readings, and UPS operating status information. The inverter and the microprocessor control stage provide increased efficiency and greater configuration options. Maximum expandability: the Sentinel Rack is supplied as standard with a USB port and an expansion slot for protocol conversion or relay contacts boards. With energy savings in mind, Sentinel Rack is also fitted with a shut-off switch to reduce energy consumption to zero during prolonged periods of inactivity (ECO LINE). Sentinel Rack is available in 1500 VA and 3000 VA models.

Enquire About This Product

Downloads

Characteristics

  • Power factor 0.9
  • Operating flexibility
  • Emergency function
  • Battery optimisation
  • Runtime expandability
  • Compact design
  • Depth 380 mm

Different operating modes are available to reduce energy consumption based on specific load and user requirements.

  • ON LINE: maximum load protection and output voltage waveform quality;
  • ECO Mode: the UPS uses LINE INTERACTIVE technology, with the load powered by the mains, reducing consumption and thus improving efficiency (up to 98%);
  • SMART ACTIVE Mode: the UPS automatically selects ON LINE or LINE INTERACTIVE operation, depending on the quality of the mains supply, checking the number, frequency and type of disturbances present;
  • STANDBY OFF: the UPS supplies the load only when the mains fails. The inverter begins working with a progressive start up sequence to prevent inrush currents;
  • Frequency Converter operation (50 or 60 Hz).

This configuration ensures the operation of emergency systems that must be supplied in the event of a mains power failure, such as emergency lighting, fire detection/extinguishing systems and alarms. When the mains power supply fails, the inverter begins powering the loads with a progressive start up (Soft Start) in order to prevent overload. Sentinel Rack is compliant for installation in medium-voltage transformer rooms in accordance with applicable legislation, for the power supply with reserve charge of medium-voltage coils.

The Sentinel Rack range has a deep discharge protection device to optimise battery life. Periodically the UPS carries out a battery efficiency test (which can also be manually activated); its wide input voltage tolerance range helps to reduce battery usage and maintain performance over time.

The SER 3000 ER version is designed without internal batteries, therefore it must be combined with one or more battery packs for normal operation. Thanks to a powerful charger, it is possible to configure solutions for long periods of autonomy and recharge the batteries in a short time.

Thanks to the use of high frequency components and load-based fan speed control, the noise produced by the UPS is less than 40 dBA.

  • Filtered, stabilised and reliable voltage: double conversion ON LINE technology (VFI compliant with IEC 62040-3) with filters for the suppression of atmospheric disturbances;
  • High overload capability (up to 150%);
  • Programmable Auto-restart when mains is restored;
  • Battery start up (Cold Start);
  • Power factor correction (UPS input power factor, close to 1);
  • Wide input voltage tolerance range (from 140 V to 276 V) without battery intervention;
  • Runtime extendable up to several hours;
  • Fully configurable using UPS Tools configuration software;
  • Highly reliable batteries (automatic and manually-activated battery test);
  • High level of UPS reliability (total microprocessor control);
  • Low impact on the mains (sinusoidal take up).
  • Multi-platform communication for all operating systems and network environments: PowerShield3 supervision and shutdown software for Windows operating systems 11, 10, 8, Server 2022, 2019, 2016 and previous versions, Windows Server Virtualization Hyper-V, macOS, Linux, Citrix XenServer and other Unix operating systems;
  • UPS Tools configuration and customisation software supplied as standard;
  • RS232 serial port and opto-isolated contacts;
  • USB port;
  • Slot for communications boards.

Technical Specifications

MODELS SER 1500
POWER 1500 VA/1350 W
Rated voltage [V] 220 / 230 / 240
Voltage range without battery intervention [V] 140 <Vin <276 @ 50% load / 184 <Vin <276 @ 100% load
Voltage tolerance [V] 230 ±20%
Maximum permitted voltage [V] 300
Rated frequency [Hz] 50 / 60
Frequency tollerance [Hz] 50 ±5% / 60 ±5%
Power factor >0.99
Current distortion ≤7%
Voltage tolerance [V] 180 / 264
Frequency tolerance [Hz] Frequency selected (from ±1.5 to ±5 configurable)
Overload times 125% for 5 s, 150% for 1 s
Voltage distortion with linear load / with non-linear load <2% / <4%
Frequency [Hz] Selectable: 50 or 60 or self-learning
Static variation ±1%
Dynamic variation ≤5% in 20 ms
Waveform Sinusoidal
Current crest factor 3:1
Efficiency ECO and SMART ACTIVE Modes 98%
Type VRLA AGM maintenance-free lead based
Recharge time 2-4 h
Net weight [kg] 22
Gross weight [kg] 24
Dimensions (WxDxH) [mm] 450x380x87 (19”x380x2U)
Packaging dimensions (WxDxH) [mm] 540x490x190
Protection against overvoltage [J] 300
Protections Overcurrent - short circuit - overvoltage - undervoltage - temperature - excessive low battery
Communications USB / DB9 with RS232 and contacts / Slot for communications interface
Input plugs 1x IEC 320 C14 (10 A)
Output sockets 8x IEC 320 C13 (10 A)
Standards European directives: LV 2014/35/EU low voltage Directive EMC 2014/30/EU electromagnetic compatibility Directive Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant Classification in accordance with IEC 62040-3 (Voltage Frequency Indipendent) VFI - SS - 111
Ambient temperature for the UPS 0 °C - +40 °C
Recommended temperature for battery life +20 °C - +25 °C
Range of relative humidity 5-95% non-condensing
Colour RAL 9005
Noise level at 1 m (ECO Mode) [dBA] <40
Standard equipment provided Power cable, IEC-IEC cable, USB cable, safety manual, quick start guide
